13 71 027 Removing intake port (N57 D30 U/O/T 0/1)

Necessary preliminary tasks:

Version 1:

Press in latch mechanism on intake silencer housing.

Release screw (2).

Feed out intake duct (1) towards top.

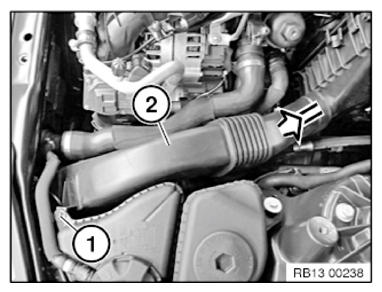

Fig 1: Removing Intake Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

Press in latch mechanism on intake silencer housing.

Release screw (1).

Unlock intake port (2) at intake silencer housing and release in direction of arrow.

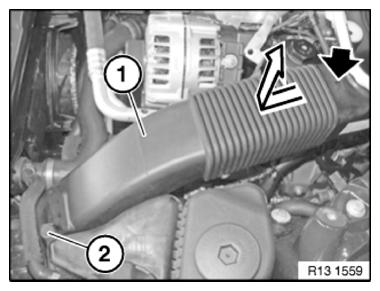

Fig 2: Pressing Latch Mechanism On Intake Silencer Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Press in latch mechanism (1).

Detach intake port (2) towards rear and remove.

Fig 3: Detaching Intake Port

Courtesy of BMW OF NORTH AMERICA, INC.
