Battery in luggage compartment under spare wheel

Remove spare wheel.

Release screws.

CAUTION: Do not kink air pipes.

Set air supply system (1) to one side.

Follow instructions for disconnecting and connecting battery.

Disconnect battery negative lead.

Fig 1: Identifying Air Supply System

Courtesy of BMW OF NORTH AMERICA, INC.

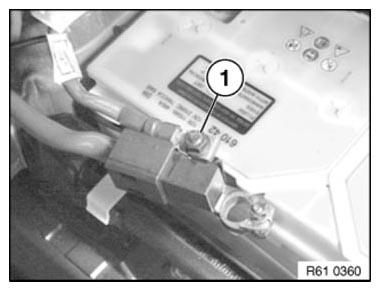

Disconnect supply cable (1) for vehicle electrical system.

Installation:

Remove faulty fuses and carry out troubleshooting.

Fig 2: Identifying Vehicle Electrical System Supply Cable

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Pay attention to interface.

The repair cable is always a standard length.

The heavy-current connector of the repair cable has a larger diameter than the battery positive lead.

In some Series (e.g. E46 touring), the heavy-current connector of the repair cable can lead to installation problems.

This is the case when the interface is in the area of the close-fitting trim panels.

Find matching interface (e.g. approx. 10 cm behind rear seat backrest in E46 touring).

Lay repair cable parallel to battery positive lead.

Mark interface of battery positive lead at end of repair cable.

Fig 3: Locating Mark Interface Of Battery Positive Lead

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable ties (1).

Disconnect plug connection (2).

Fig 4: Identifying Cable Ties And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not use bolt cutters or similar tools to cut through the cable.

A cable end that has been squashed flat will no longer fit into the clamping sleeve.

Fig 5: Locating Battery Positive Cable End

Courtesy of BMW OF NORTH AMERICA, INC.

Saw through battery positive cable at marked point with an iron saw.

Strip insulation - length (A) - from cable end.

Distance (A) = 15 mm.

Fig 6: Identifying Strip Insulation Dimension From Cable End

Courtesy of BMW OF NORTH AMERICA, INC.

Push heavy-current connector (1) over stripped cable end and screw into position.

Fig 7: Identifying Heavy-Current Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Push shrink-fit hose (3) over repair cable. Screw threaded sleeve (1) of repair cable (2) to heavy-current connector.

Fig 8: Identifying Shrink-Fit Hose And Threaded Sleeve Of Repair Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Push shrink-fit hose (1) over connecting point and shrink on with a hot-air blower (2).

Fig 9: Identifying Shrink-Fit Hose And Hot-Air Blower

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Heat up shrink-fit hose until it has settled completely around the connection point.

Fig 10: Locating Shrink-Fit Hose Connection Point

Courtesy of BMW OF NORTH AMERICA, INC.

When laying the repaired battery positive cable, observe the following:

The shrink-fit hose must not be scuffed during any movement.
The repair cable must not cause any disturbing noises during driving operation.

NOTE: Offsetting cutting line by approx. 10 cm produces excess length of battery positive lead (1).

Lay battery positive lead (1) without kinks or abrasions.

(Shown on E46 touring.)

Fig 11: Identifying Battery Positive Lead

Courtesy of BMW OF NORTH AMERICA, INC.
