13 90 500 Replacing tank vent valve (N74)

Necessary preliminary tasks:

• Check stored fault message
• Turn off ignition
• Remove ACOUSTIC COVER
• Remove right INTAKE FILTER HOUSING
• Remove right TENSION STRUT
• Remove SOUND INSULATION from bulkhead on right

Unlock hose (1) from air duct and pull off.

Fig 1: Identifying Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and remove.

Unlock hose (2) and detach.

Pull off tank vent valve (3) from holder and feed out together with hose (4) and remove.

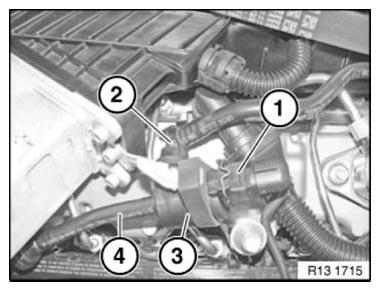

Fig 2: Identifying Tank Vent Valve, Hose And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Delete fault memory.

Assemble engine.
