Pressure converter, cylinders 1-6

Disconnect plug connection (3) on pressure converter.

Installation note:

Plug connection (3) must snap audibly into place!

Disconnect black vacuum hose (1) at connection (VAC = vacuum reservoir).

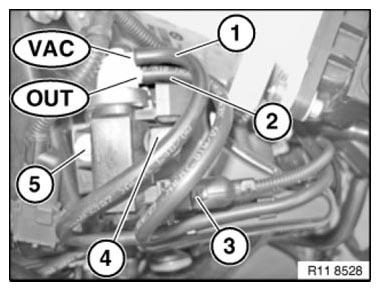

Fig 1: Identifying Vacuum Hoses, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect black vacuum hose (2) at connection (OUT = vacuum unit of exhaust turbocharger).

Undo screws (4 and 5)

Tightening torque: see 2AZ in 11 00 STANDARD SCREW CONNECTION

Remove pressure converter.
