51 11 060 Removing and installing/replacing support for front lower bumper panel

Necessary preliminary tasks:

• Remove front BUMPER PANEL
• Remove FRONT UNDERBODY PROTECTION in the working area
• If necessary, remove impact absorber below

Release screws (1).

Tightening torque 51 11 10AZ .

Remove support (2) in direction of arrow.

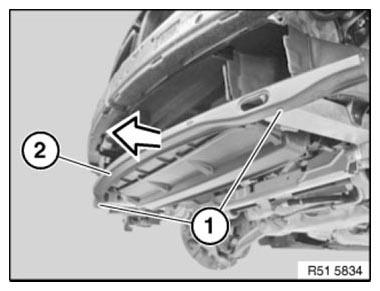

Fig 1: Removing Front Lower Bumper Trim Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
