41 61 000 Removing And Installing Engine Compartment Lid
WARNING:
Danger of injury!
Support engine compartment lid in fully opened position with suitable apparatus.
Removal of the engine compartment lid must be carried out with the assistance of a second person.
Support engine compartment lid in fully opened position with suitable apparatus.
Removal of the engine compartment lid must be carried out with the assistance of a second person.
IMPORTANT:
These instructions only apply to vehicles without active pedestrian protection
!
Observe separate procedure for vehicles with ACTIVE PEDESTRIAN PROTECTION !
Observe separate procedure for vehicles with ACTIVE PEDESTRIAN PROTECTION !

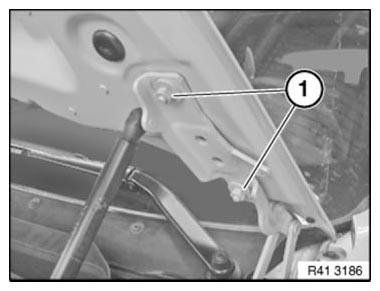

Unscrew nuts (1).
Remove engine compartment lid.
Installation note:
Install engine compartment lid at screw locations to on hinge.
Tightening torque: see 1AZ in 41 61 ENGINE COMPARTMENT LID
If necessary, adjust ENGINE COMPARTMENT LID .
