51 23... Checking hood/bonnet locks

Necessary preliminary tasks:

Check hood/bonnet locks for damage; replace if necessary.

Test result Solution
Retaining tabs (1) bent Replace hood/bonnet lock
Spring (2) scratched or damaged Replace hood/bonnet lock
Movable parts stiff Replace hood/bonnet lock

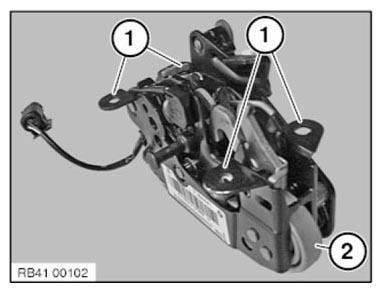

Fig 1: Identifying Hood/Bonnet Lock Retaining Tabs And Spring
G08471931Courtesy of BMW OF NORTH AMERICA, INC.
