51 71... Removing and installing/replacing left or right tank cover

Release all screws (2).

Tightening torque 51 75 1AZ .

Unscrew nut (3).

Feed out tank cover (1) towards rear above tension strut (4).

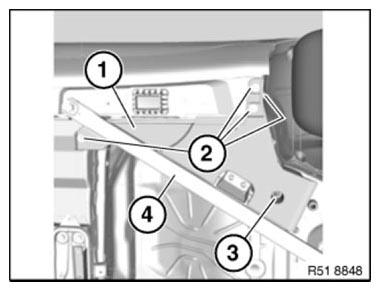

Fig 1: Identifying Tank Cover, Tension Strut, Nut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
