51 71... Installing and removing/replacing vehicle hoist mounting

Special tools required:

Insert special tool 51 3 330 between vehicle hoist mounting (1) and vehicle underbody (2) and remove.

IMPORTANT: Risk of corrosion!
Touch up paintwork damage.
Re-establish wax layer.

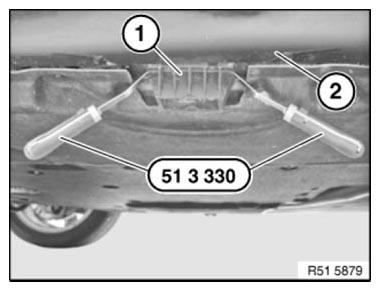

Fig 1: Removing Vehicle Hoist Mounting And Vehicle Underbody Using Special Tool (51 3 330)

Courtesy of BMW OF NORTH AMERICA, INC.
