51 32 170 Remove and install/replace side window, front left or right

Necessary preliminary tasks:

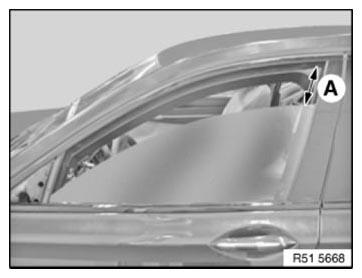

Side window glass must be opened to dimension (A).

A = 145 mm

Fig 1: Identifying Side Window Glass Opening Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

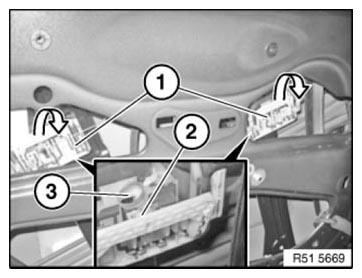

Carefully unlock window glass locating clips (1) in direction of arrow.

Gently press side window glass upwards to snap retaining lug (2) completely out of side window glass bore hole (3).

IMPORTANT: Risk of damage!
Do not bend locating clips (1) too far.

Installation note:

Make sure retaining lug (2) is correctly engaged in side window glass bore hole (3).

Fig 2: Unlocking Window Glass Locating Clips

Courtesy of BMW OF NORTH AMERICA, INC.

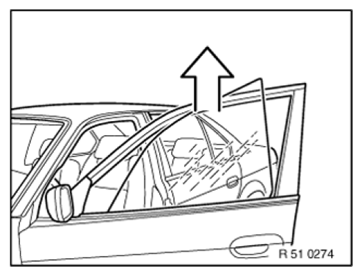

Turn side window and lift out towards rear/top.

Fig 3: Lifting Rear/Top Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

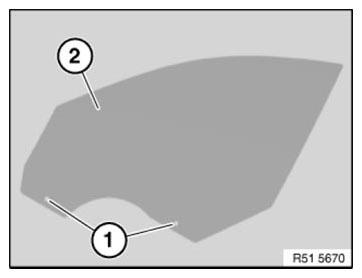

Bore holes (1) of side window glass (2) must not be damaged.

Side window glass does not need to be adjusted.

Fig 4: Identifying Bore Holes And Side Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
