Prepare front spoiler

Clean adhesive area on bumper panel using CLEANING AGENT R2 .

Lay out clamp, adhesive tape and rigid foam block (approx. 105 mm high) for fixing in place.

Clean contact surface (2) of front spoiler.

Apply adhesive bead (Ø = 5 mm) according to dimension (A) to the contact surface (2) of the front spoiler.

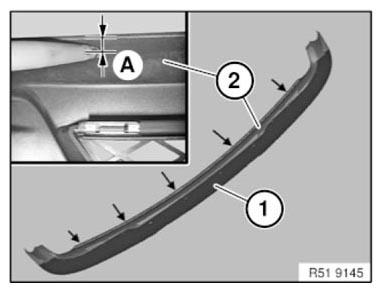

Fig 1: Identifying Adhesive Bead Applying Area On Front Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

1. = 15 mm from edge of spoiler
