Attach front spoiler

NOTE: The operation is shown on the left side; proceed in the same way for the right side.

Pull off liner (1) only partly and secure with adhesive tape (2) to outside of front spoiler.

Pull off complete liner (3).

Place front spoiler (4) on bumper and align.

Pull off the liner (1) gradually and simultaneously press against the bumper panel. Make sure the front spoiler (4) is correct fitted.

Fig 1: Identifying Front Spoiler, Liner And Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the front spoiler (1) in the area of the wheel arch with clamp (3) and paint protection (2) on left and right.

Fix front spoiler (1) in place in the intake area using suitable rigid foam blocks (4) approx. 105 mm high and adhesive tape (5).

NOTE: Always work with suitable paint protection.

Fig 2: Fixing Front Spoiler In Place Of Intake Area Using Suitable Rigid Foam Blocks

Courtesy of BMW OF NORTH AMERICA, INC.

Remove emerging adhesive immediately.

Secure bumper panel using plastic rivets (1) and screws (2).

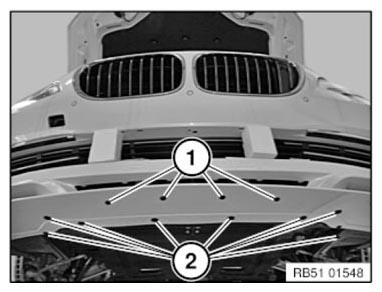

Fig 3: Identifying Bumper Panel Plastic Rivets And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Allow adhesive to set for 24 hours at a temperature of min. 15 °C.
24 hours, 100 km/h maximum speed.
Mechanical strain permitted after 2 days at the earliest (e.g. car wash).
