Windscreen removal system "Roll Out 2000"

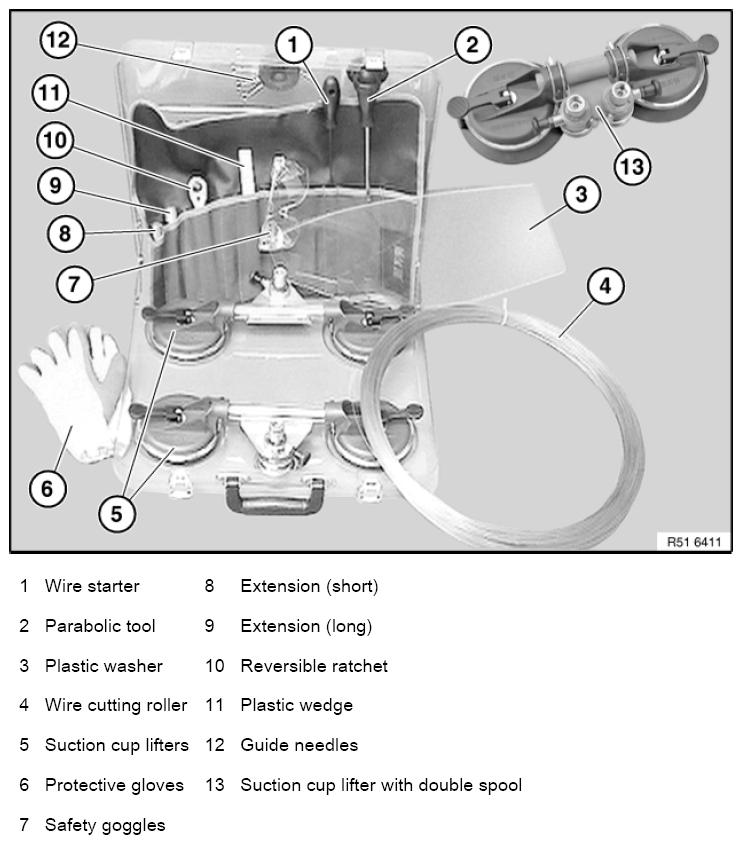

Fig 1: Identifying Windscreen Removal System Roll Out 2000

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Both paint and ergonomic and health-endangering damage is minimized with the "Roll Out 2000" system.

WARNING: Follow SAFETY INSTRUCTIONS for working on vehicles with airbag systems (risk of injury).

IMPORTANT: Take care when handling sharp-edged tools and cutting wire (risk of damage to head airbag and window glass).

IMPORTANT: Always keep both suction cups dry and clean to ensure their optimum adhesion on the windscreen.

Suction cup may not be applied at the damaged point (crack in window glass).

Lubricate spool if lock rattling becomes too loud.

Always wear safety goggles and protective gloves for your own safety.
