Replacing model designation

Mark position of model designation (1) with yellow plastic adhesive tape (2).

Coat separating string or strong yarn with tensides (e.g. washing-up liquid).

Cut through adhesive layer and remove model designation (1).

Refer to installation operation for further procedure.

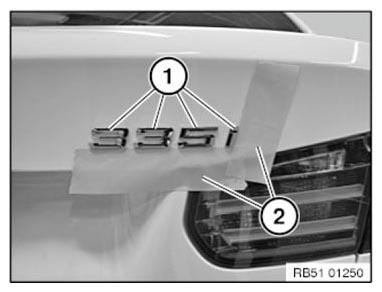

Fig 1: Securing Model Designation Using Adhesive Tape
G08471713Courtesy of BMW OF NORTH AMERICA, INC.
