51 14 111 Replacing model name plate, rear: Assembly
If required, remove adhesive layer residues with grinding wheel and/or cleaning agent R2.
Clean the adhesive area.

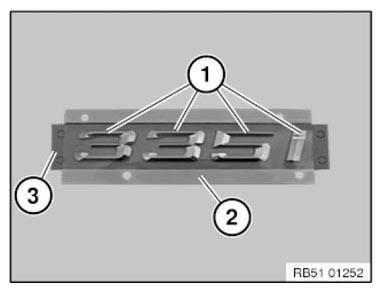

Number and letter combinations (1) of the model designation are not connected to each other and are supplied on a backing film (2).
Remove liner (3) (protective film for bonding surface).
Place model designation at marked position and press down firmly.
Remove backing film (2) and template.
