66 54 010 Removing and installing complete night vision camera

IMPORTANT: Read and comply with NOTES on protection against electrostatic discharge (ESD protection).

Necessary preliminary tasks:

Release screws (2) on holder for camera (1).

Unclip latch mechanisms (3) on camera holder (1).

Remove camera including holder (1).

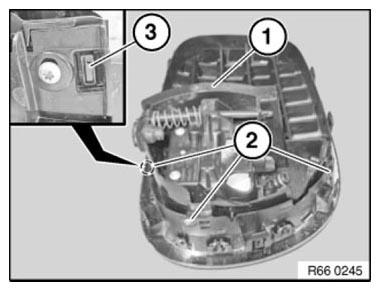

Fig 1: Identifying Latch Mechanisms On Camera Holder

Courtesy of BMW OF NORTH AMERICA, INC.
