24 34... Notes on Mechatronics (GA6HP19Z, GA6HP26)

IMPORTANT: After completing work:

Load specific data version with DIS
Check transmission oil level. See CHECKING/TOPPING UP OIL LEVEL (GA6HP19Z) or CHECKING/TOPPING UP OIL LEVEL (GA6HP26Z) .
Use only the approved TRANSMISSION OIL .

Failure to comply with this requirement will result in serious damage to the automatic transmission.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

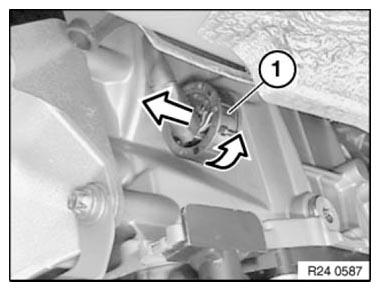

Unscrew plug (1) and disconnect.

Fig 1: Disconnecting Plug

Courtesy of BMW OF NORTH AMERICA, INC.

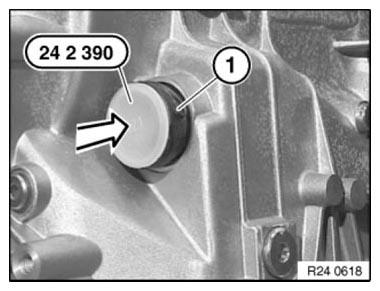

Insert special tool 24 2 390 in sealing sleeve (1).

Fig 2: Inserting Sealing Sleeve Using Special Tool 24 2 390

Courtesy of BMW OF NORTH AMERICA, INC.
