13 71 150 Removing clean air pipe (N54)

Necessary preliminary tasks:

• Remove ACOUSTIC COVER

Release clamps (1).

Pull clean air pipe out of holder and remove.

Installation:

Tightening torque 13 71 2AZ .

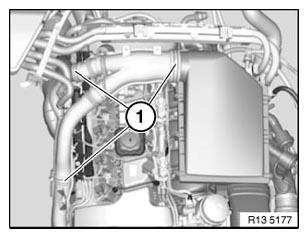

Fig 1: Identifying Clean Air Pipe Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
