Trimming bumper panel to size

Remove BUMPER PANEL .

Mark points (A to D) on left and right of untrimmed bumper panel (1).

Measurements are taken from the slats of the ornamental grille (2).

1. = 65 mm
2. = 65 mm
3. = 75 mm
4. = 90 mm

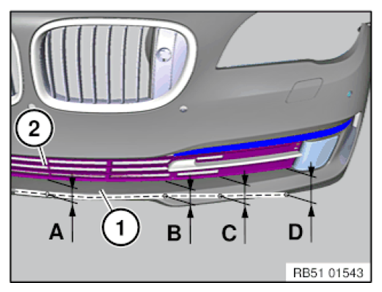

   Fig 1: Identifying Ornamental Grille Measurements

   Courtesy of BMW OF NORTH AMERICA, INC.
5. = Perpendicular to point (D)

Connect points (A to E) and cut out area (1).

Place front spoiler on cut bumper panel and check for accuracy of fit; if necessary, rework bumper panel.

After completion of work, deburr the cutting edges.

BUMPER PANEL  must now be attached.

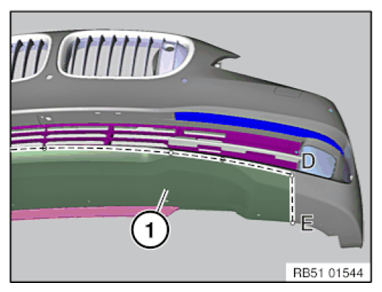

Fig 2: Identifying Connect Points (A To E) And Cut Out Area

Courtesy of BMW OF NORTH AMERICA, INC.
