51 31... Remove windscreen with "Roll Out 2000": Notes

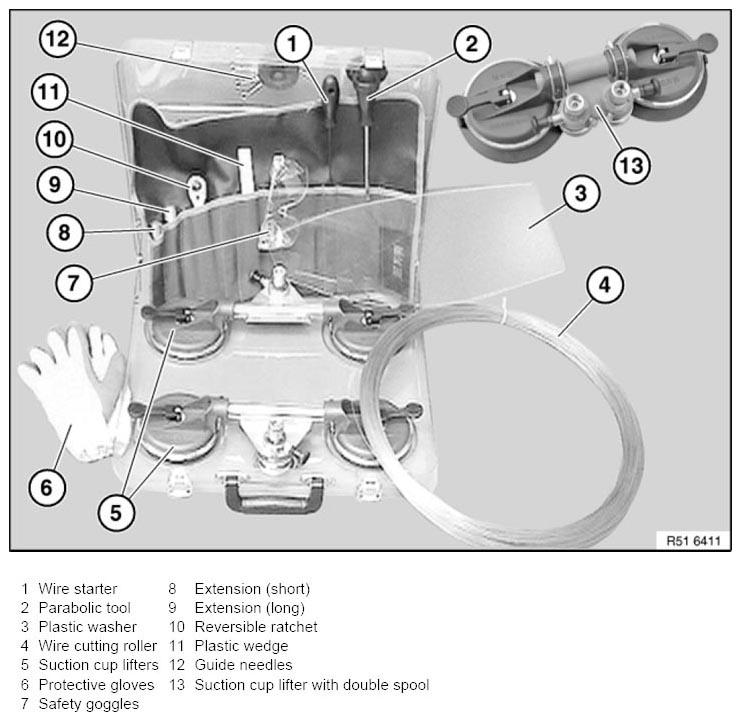

Fig 1: Identifying Windscreen Removal System Components
G06885686Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Both paint and ergonomic and health-endangering damage is minimized with the "Roll Out 2000" system.
WARNING: Risk of injury. Follow SAFETY INSTRUCTIONS .
IMPORTANT: Take care when handling sharp-edged tools and cutting wire (risk of damage to head airbag and window glass).
IMPORTANT: Always keep both suction cups dry and clean to ensure their optimum adhesion on the windscreen.

Lubricate spool if lock rattling becomes too loud.

Always wear safety goggles and protective gloves for your own safety.
