51 14... Instructions for attaching number/letter designation combination: Assembly

Number and letter combinations (1) of the model designation are not connected to each other and are supplied on a backing film (2).

IMPORTANT: Adhesive areas must be dry and free of dust and grease.

Once it has been cleaned, do not touch the adhesive area with bare hands.

Remove liner (3) (protective strip for adhesive surface).

Press on model designation firmly.

Remove backing film (2).

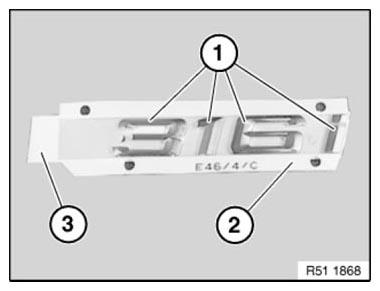

Fig 1: Identifying Letter Combinations, Liner And Backing Film
G06885376Courtesy of BMW OF NORTH AMERICA, INC.
