11 12 040 Removing and installing all ignition coils and injector wells (N55)

Necessary preliminary tasks:

• Remove CYLINDER HEAD COVER .
• REMOVE all injectors.

Release screws (1).

Tightening torque: 11 12 8AZ .

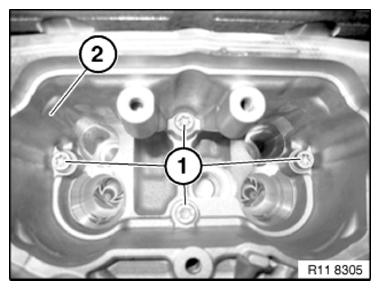

Fig 1: Identifying Injector Well Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Check fitting bushes (1) for damage.

Installation note:

Replace gasket (2).

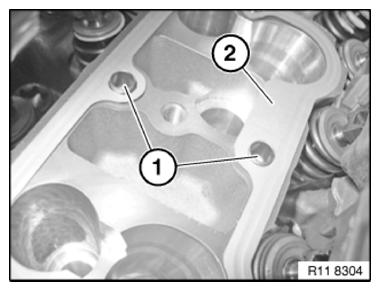

Fig 2: Identifying Bushes And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
