11 14 085 Removing and installing timing case cover, top right (N63)

Gear case cover, cylinders 1-4:

Necessary preliminary work:

• Remove both SOLENOID VALVES on right side

Release screws (1).

Tightening torque 11 14 3AZ .

Remove timing case cover (2).

Installation note:

Replace gasket.

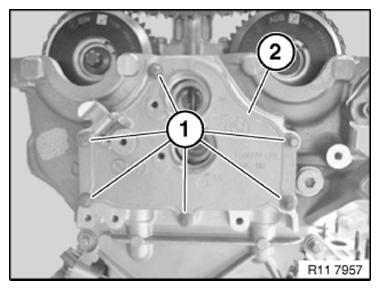

Fig 1: Identifying Timing Case Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
