11 14 080 Removing and installing timing case cover, top left (N63O1)

Timing case cover, cylinders 5-8

Necessary preliminary work:

• Remove left CHARGE AIR COOLER
• Remove coolant pipe.

Release screws (1).

Tightening torque 11 14 3AZ .

Remove timing case cover (2).

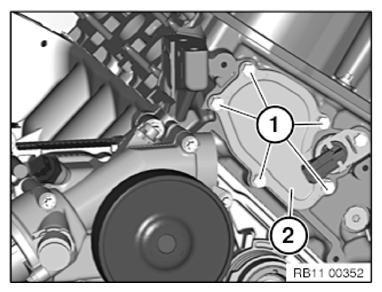

Fig 1: Identifying Timing Case Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace gasket (1).

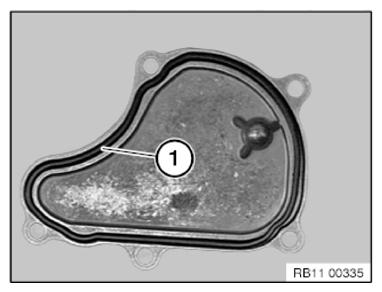

Fig 2: Identifying Cover Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
