61 31 204 Replacing operating unit for seat adjustment (Basic seat)

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

Release screws (1).

Raise operating unit for seat adjustment (2).

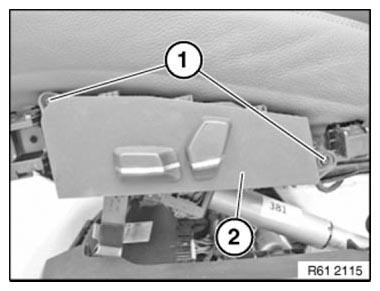

Fig 1: Identifying Seat Adjustment Operating Unit And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove operating unit for seat adjustment.

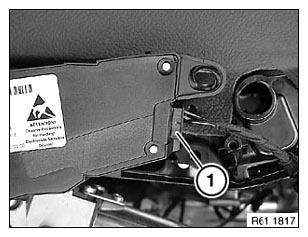

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
