12 61 285 Removing and installing/replacing oil level sensor for engine oil (N57 D30 O/T 1)

IMPORTANT: READ and comply with notes on protection against electrostatic discharge (ESD protection)!

Necessary preliminary tasks:

Unlock connector (1) and remove.

Unscrew nuts (2).

Tightening torque 12 61 2AZ .

Remove oil level sensor (3).

Installation note:

Clean sealing surface on oil sump.

Replace seal on oil level sensor.

An excessively low torque value will result in oil leaks.

An excessively high torque value will result in damage to the oil level sensor.

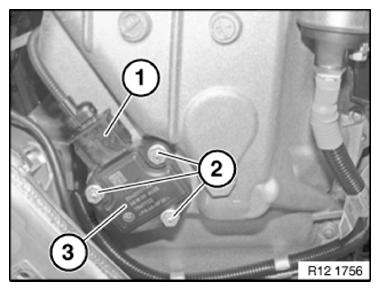

Fig 1: Identifying Oil Level Sensor, Nuts And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Top up engine oil.

NOTE: Check stored fault message.
Delete fault memory.
