Removing left or right automatic reel

Protective cap(1)

Release screw (2).

Tightening torque 72 11 21AZ .

Installation note:

End fitting is coded against incorrect assembly.

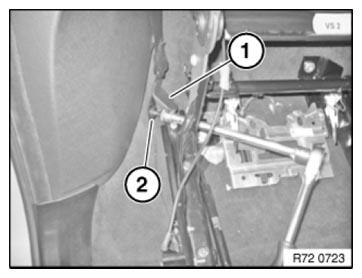

Fig 1: Identifying Seat Belt Cap And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 72 11 24AZ .

Remove belt deflector.

Unfasten screws (2).

Tightening torque 72 11 20AZ .

Remove automatic reel with anchor fitting.

Installation note:

Automatic reel is coded against incorrect installation.

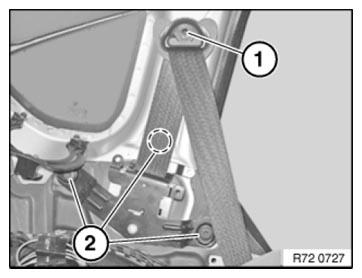

Fig 2: Identifying Reel Screws

Courtesy of BMW OF NORTH AMERICA, INC.
