65 13 070 Removing and installing/replacing speakers (mid-range speaker, front door left and right)

Necessary preliminary tasks

• Remove front door trim panel. See 51 41 000 REMOVING AND INSTALLING (REPLACING) FRONT LEFT OR RIGHT DOOR TRIM PANEL .

Secure speaker against falling out.

Release screws (1).

Tightening torque 51 41 03 .

Remove speaker (2) from door trim panel (3).

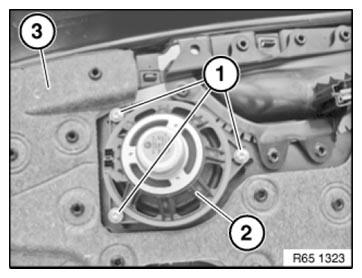

Fig 1: Identifying Speaker, Door Trim Panel And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
