Battery in luggage compartment behind side trim panel

Remove side trim panel.

Follow instructions for disconnecting and connecting battery.

Disconnect and cover battery negative lead.

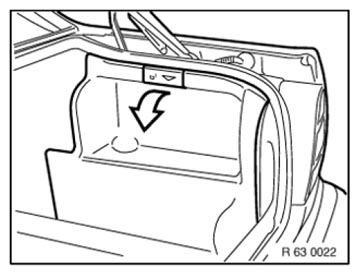

Fig 1: Removing Side Trim Panel
G08420108Courtesy of BMW OF NORTH AMERICA, INC.

Release front side trim panel partly and fold forward.

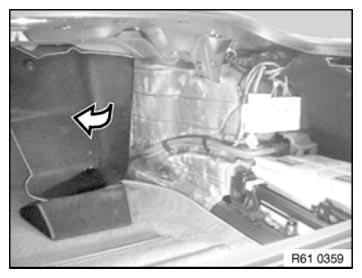

Fig 2: Releasing Front Side Trim Panel Partly
G08420109Courtesy of BMW OF NORTH AMERICA, INC.
