13 53 310 Removing and installing/replacing an injector (N55)

Observe WARNINGS ON REMOVAL OF THE INJECTORS without fail!

IMPORTANT: There are two different injector versions and hold-down device versions for the N55 engine.
A mixed installation of the components (hold-down device, spark plug shafts, injectors, cylinder heads and screws) between the two hold-down device versions is not possible/permitted!
Removal and installation of the various injectors are described separately according to the hold-down device version.

The hold-down device version must be identified beforehand in order to select the correct repair instructions.

Remove ACOUSTIC COVER

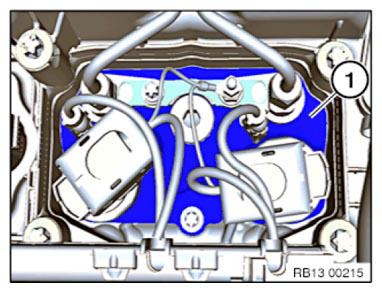

The bottom hold-down device version can be found on the electromagnetic compatibility panel (1) installed above the injectors.

REMOVING AND INSTALLING INJECTOR up to engine number 14407684 .
Only E70, E71:
Removing and installing injector up to engine number 02167648 .

Fig 1: Identifying Electromagnetic Compatibility Panel Above Injectors
Courtesy of BMW OF NORTH AMERICA, INC.

The top hold-down device version can be found on the hold-down device installed on top (1).

REMOVING AND INSTALLING INJECTOR from engine number 14407685 .
Only E70, E71:
Removing and installing injector from engine number 02167649 .

Fig 2: Identifying Hold Down Device Installed On Top Of Injectors
Courtesy of BMW OF NORTH AMERICA, INC.
