51 22 330 Removing and installing/replacing window cavity cover strip on inside rear door

IMPORTANT: The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS" serve as the basis for this repair instruction and must be observed without fail.

Necessary preliminary tasks

Pull front window cavity cover strip (1) off rear door.

Installation:

Moisten window cavity cover strip (1) prior to fitting with APPROVED LUBRICANT .

Fig 1: Pulling Front Window Cavity Cover Strip From Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.

Pull rear window cavity cover strip (1) off rear door.

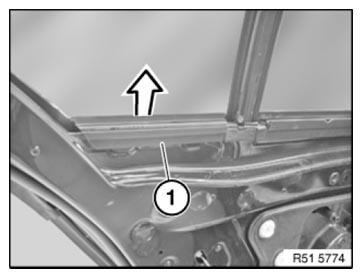

Fig 2: Pulling Rear Window Cavity Cover Strip From Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.
