51 22 300 Removing and installing/replacing window cavity cover strip on rear door on left or right

Special tools required:

IMPORTANT: Observe PROCEDURE for using special tool 00 9 324 .

IMPORTANT: If reusing the existing window cavity cover strip (1), make sure it is not bent.

Tape off area below window cavity cover strip with fabric adhesive tape (2).

Lever out window cavity cover strip (1) with special tool 00 9 324 (starting at B-pillar).

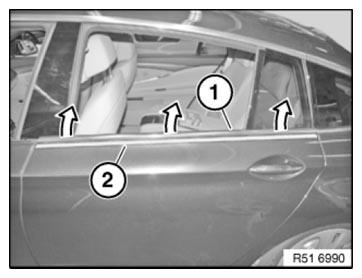

Fig 1: Identifying Window Cavity Cover Strip And Fabric Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal (1) must be correctly fitted in cover strip (2).

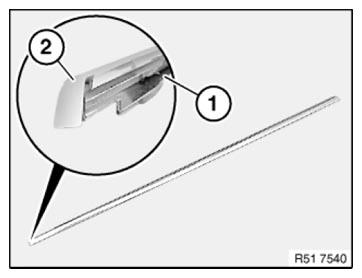

Fig 2: Identifying Cover Strip And Seal

Courtesy of BMW OF NORTH AMERICA, INC.
