51 21 300 Removing and installing or replacing window cavity cover strip on outside of left or right front door

Special tools required:

IMPORTANT: Observe PROCEDURE for using special tool 00 9 324 .

Attach fabric adhesive tape (2) beneath window cavity cover strip (1).

IMPORTANT: If reusing the existing window cavity cover strip (1), make sure it is not bent.

Lever out window cavity cover strip (1) with special tool 00 9 324 (starting at B-pillar).

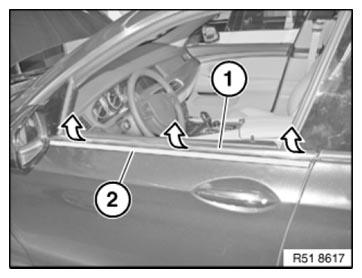

Fig 1: Removing Window Cavity Cover Strip Using Special Tool (00 9 324)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

In area (A) of cavity strip (1), cover door panel (2) with adhesive tape (risk of damage).

Insert cavity strip (1) in guide (3) and press on.

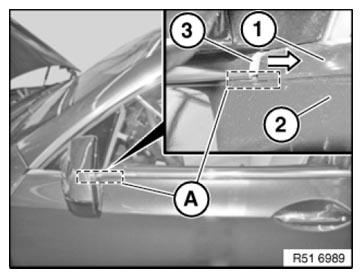

Fig 2: Inserting Cavity Strip In Guide

Courtesy of BMW OF NORTH AMERICA, INC.

5121300 Removing and installing or replacing window cavity cover strip on outside of left or right front door
