51 21 125 Removing and installing/replacing carrier for left or right outside door handle with lock cylinder

Special tools required:

51 2 190

Necessary preliminary tasks

Remove OUTSIDE HANDLE .
Partly remove FRONT WINDOW LIFT.

Disconnect Bowden cable at bottom (1) and top (3) from door lock (2).

Installation:

Bowden cable must be correctly engaged in locators in door lock (2).

Bowden cable must be laid without kinks in bend to door lock (2).

Seal (4) must be correctly fitted on Bowden cable.

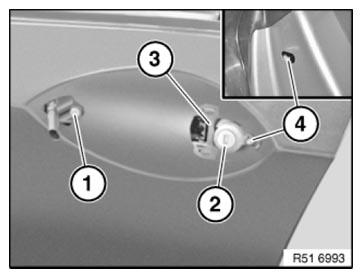

Fig 1: Disconnecting Bottom And Top Bowden Cable From Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Door cannot be opened if Bowden cable (1) is incorrectly laid.

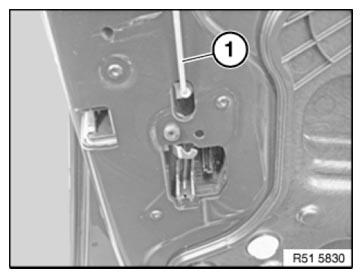

Unclip locking rod (1).

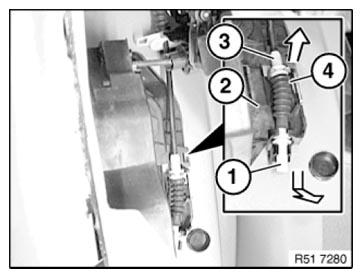

Fig 2: Identifying Door Locking Rod

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage door lock seal when removing.

Release screws (1).

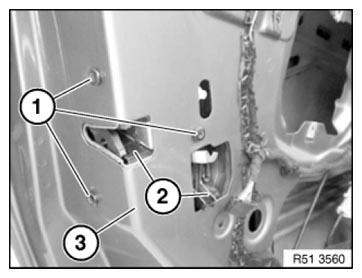

Fig 3: Identifying Door Lock, Locking Pin And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage door lock (1) at locking pin (2).

Carefully remove door lock (1) and set down carefully in door interior.

Installation:

Make sure locking pin (2) is correctly seated in locator (3).

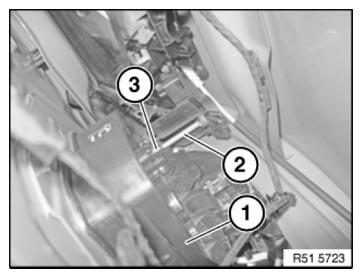

Fig 4: Identifying Door Lock, Locking Pin And Locator

Courtesy of BMW OF NORTH AMERICA, INC.

Pry out interior window cavity cover strip (1).

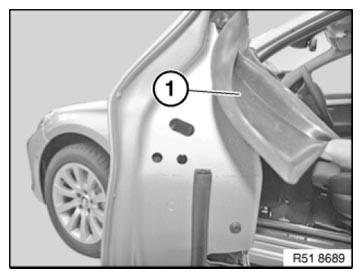

Fig 5: Identifying Interior Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Release fixing screw (1).

Release screw (4) and take out protective cap (2).

Feed out carrier.

Installation:

Align lock cylinder or dummy plug (2) with aid of fixing screw (1).

Rubber seal (3) must be correctly seated on lock cylinder or dummy plug (2).

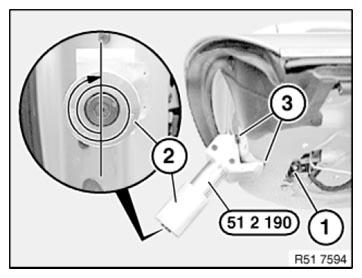

Fig 6: Identifying Dummy Plug, Protective Cap, Rubber Seal And Fixing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Feed Bowden cable (1) out of carrier (2).

Remove LOCK CYLINDER .

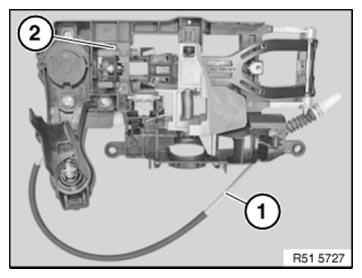

Fig 7: Identifying Bowden Cable And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install door lock and insert screws (1), do not tighten down.
Slide special tool 51 2 190 into opened rotary striker until striker engages in first stage

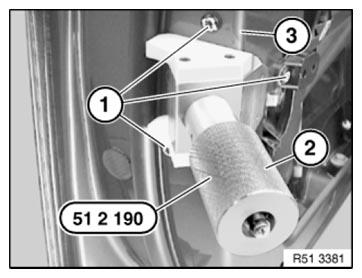

Fig 8: Installing Door Lock Using Special Tool (51 2 190)
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pre-tension door lock (1) with knurled screw (2) until special tool 51 2 190 just contacts corner points (3)

IMPORTANT: To tension door lock (1), it is only permitted to turn knurled screw (2) by a further 1 to 1.5 turns (max.) (risk of damage).
Door lock seal must rest uniformly on inner door plate (water ingress).

Fig 9: Turning Tension Door Lock Knurled Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down door lock screws, tightening torque 51 21 1AZ .
