Removing the wheel arch

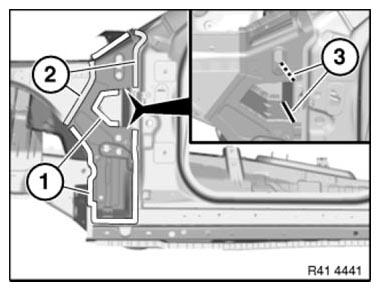

Open welded connections in areas (1).

LOOSEN spot-welded adhesive joints in areas (2).

Roughly cut side frame connection along lines (3).

Release the side frame connection from the cavity sealing and remove.

Fig 1: Identifying Welded Connections Area And Side Frame Connection Lines

Courtesy of BMW OF NORTH AMERICA, INC.

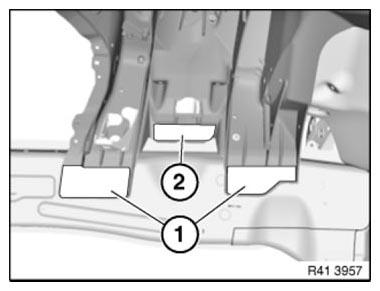

Drill out rivet connections in area (1).

Open bonded connection in area (2).

Fig 2: Identifying Bonded And Rivet Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

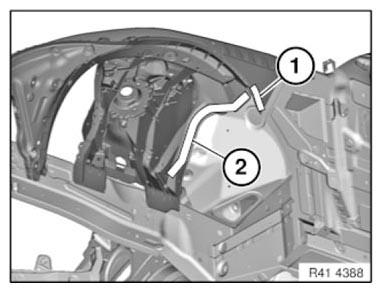

View from above:

Open welded connections in areas (1) to (3).

Fig 3: Identifying Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in area (1).

Drill out rivet connections in area (2).

Open bonded connection in area (2).

Fig 4: Identifying Bonded And Rivet Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

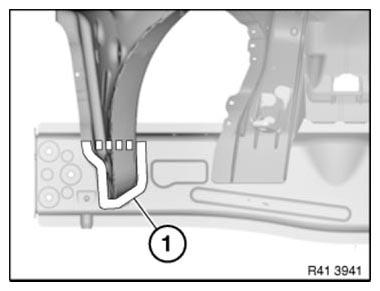

Open welded connections in area (1).

Fig 5: Identifying Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

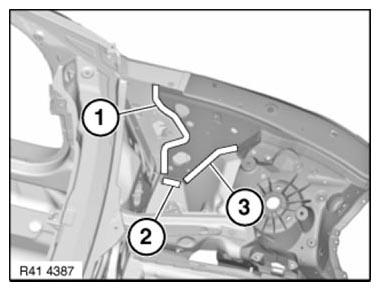

Drill out rivet connections in areas (1) and (2).

Open bonded connections in areas (1) and (2).

Remove the wheel arch.

Fig 6: Identifying Rivet Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.
