Removing rear trim panel

Operation is partially described on the left side. Right side identical.

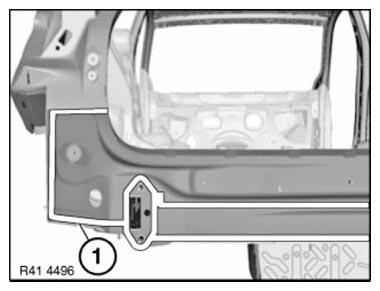

Open welded connections in area (1).

Fig 1: Identifying Rear Trim Panel Welded Connection Area
G08423860Courtesy of BMW OF NORTH AMERICA, INC.

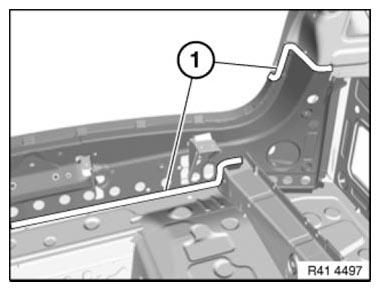

View from vehicle interior:

Open welded connections in areas (1).

Fig 2: Identifying Vehicle Interior Welded Connection Area
G08423861Courtesy of BMW OF NORTH AMERICA, INC.

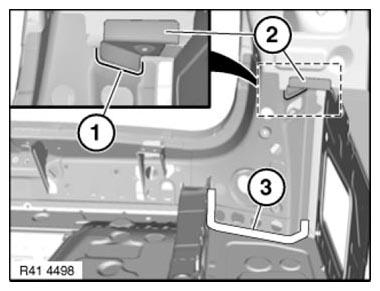

Mark severance cut (1) at edge of component (2) and cut.

Open weld joints in area (3) and remove rear trim panel.

Fig 3: Identifying Severance Cut, Weld Joints In Area And Component Cut Edge
G08423862Courtesy of BMW OF NORTH AMERICA, INC.
