New part preparation
Adjust rear trim panel in combination with rear lid and rear lights to fit and secure.
NOTE:
On vehicles with a SENSOR FOR LANE CHANGE WARNING
, also check the bumper guide for correct seating.
IMPORTANT:
Version with automatic tailgate activation:
Risk of damage to spindle drive: only move rear lid slowly by hand.
Risk of damage to spindle drive: only move rear lid slowly by hand.

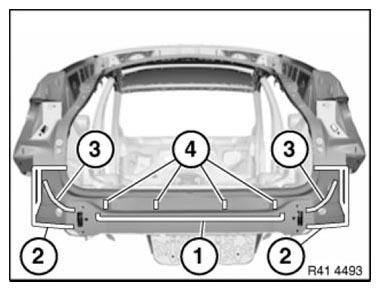

In areas (1) to (4) set 4.2 mm dia. holes for blind rivets:
| Area | Number |
|---|---|
| 1 | 9 |
| 2 | 9 of |
| 3 | 3 of |
| 4 | 4 |
Remove new part and deburr holes.
IMPORTANT:
Do not grind/sand new part in area of bonding surfaces.
