41 12 557 Stripping Operations - Replacing Luggage Compartment Floor, Middle (Tail Panel Removed)

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.

Remove exhaust system (FR number: 1800020)
Remove heat shield
Remove front and rear spare wheel well trim panel (FR-number: 51 47)
Remove battery (FR number: 61 21 010)
Remove air supply system (FR number: 37 22 540)
Remove left and right trailing links (FR number: 51 71 482)
Remove cross reinforcement (FR number: 51 71 480)

Emergency unlocking for electromagnetic parking brake:

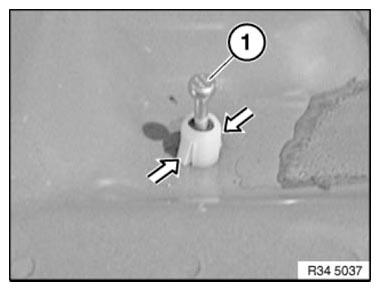

Press both detent lugs together and press cable for emergency release (1) downwards.

Fig 1: Pressing Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

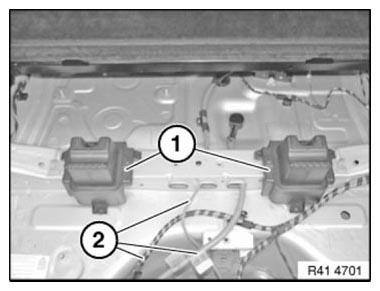

Release screws and remove supports (1).

Release positive battery leads (2) and lay to one side.

Fig 2: Identifying Supports And Positive Battery Leads

Courtesy of BMW OF NORTH AMERICA, INC.
