41 62 540 Remove / Install / Replace Both Tailgate Hinges (Tailgate Removed)

Read contents of BODY, GENERAL .

Operation is described on the left side.

Right side identical.

Release screws (1).

Remove hinge.

Installation note:

Tightening torque 41 62 2AZ .

Adjust rear lid on the basis of the 41 00... BODY GAP DIMENSIONS .

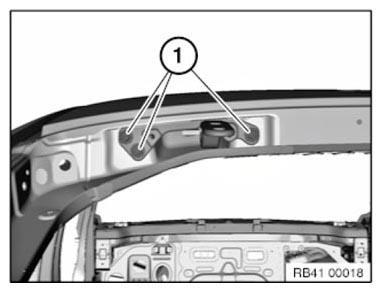

Fig 1: Identifying Right And Left Side Identical Screws

Courtesy of BMW OF NORTH AMERICA, INC.
