41 31 001 Replacing Roof Outer Skin (Version With Panorama Glass Roof): Notes
Read contents of BODY, GENERAL .
Procedure OBSERVE repair stage 2!
Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

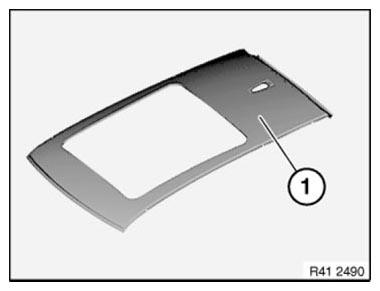

- (1) Roof outer skin panel, panorama glass sunroof
- (2) Star screws: 4 pieces order no. 07 14 7 153 767 (not shown)
- (3) Blind rivets, roof outer skin on roof frame: 2 pieces order no.
07 14 9 202 131 (not shown)
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 2 |
| Blind rivets N3 | 4 |
| Punch rivets N4 | 15 |
| EMC screws | 2 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
