Height adjustment at strikers

Adjust height by turning nut (1).

Height adjustment of engine hood/bonnet to side panel by means of STOP BUFFERS .

NOTE: The engine compartment lid is correctly adjusted in the front section by a combination of pulling the strikers and pressing the stop pads.
Incorrect adjustment results in either wobbling of the engine engine compartment lid or sluggish unlocking.

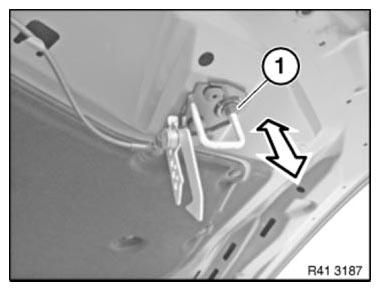

Fig 1: Adjusting Striker Height

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Check function of retaining hook.
