Installing cross-member

IMPORTANT: Do not grind new parts and body in area of bonding surfaces.

Clean all  bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install cross member and rivet with blind rivets.

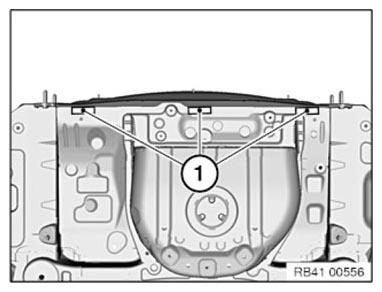

After hardening of the adhesive install 3 EMC SCREWS  in the areas shown (1).

Fig 1: Identifying Adhesive Applying Areas On EMC Screws
G08423695Courtesy of BMW OF NORTH AMERICA, INC.
