To remove engine support side frame connection

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

• (1) Connection, wheel arch/entrance

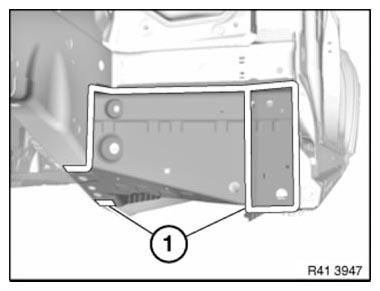

  Fig 1: Identifying Wheel Arch/Entrance Connection

  Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

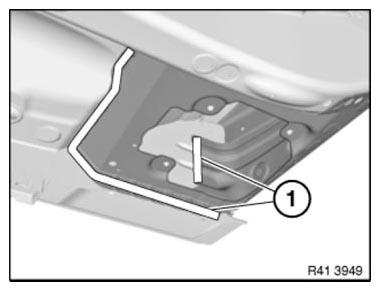

Fig 2: Identifying Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in areas (1).

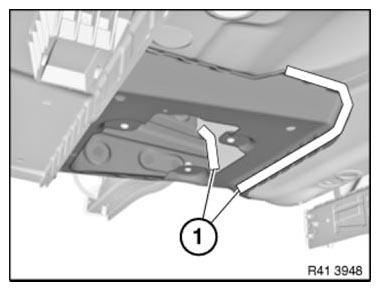

Fig 3: Identifying Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in areas (1).

Remove wheel arch/entrance connection.

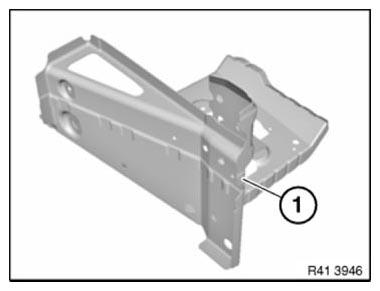

Fig 4: Identifying Wheel Arch/Entrance Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.
