New part preparation

Open welded connections in area (1).

Remove metal section (2).

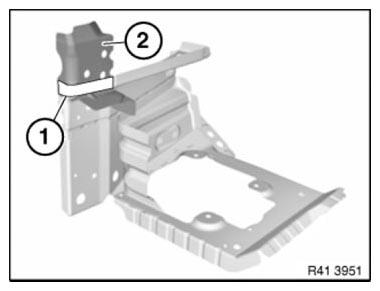

Fig 1: Identifying Metal Section And Welded Connection Area
G08423735Courtesy of BMW OF NORTH AMERICA, INC.
