Removal of engine support with wheel arch

Open welded connections in area (1).

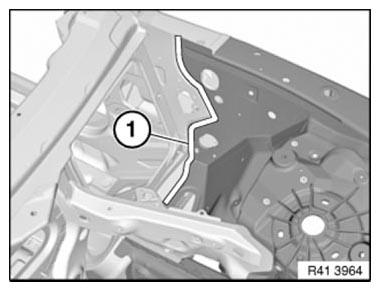

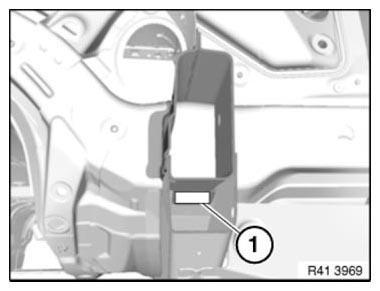

Fig 1: Identifying Engine Support With Wheel Arch Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

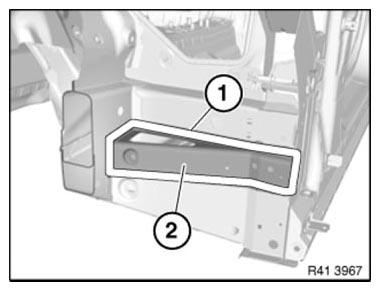

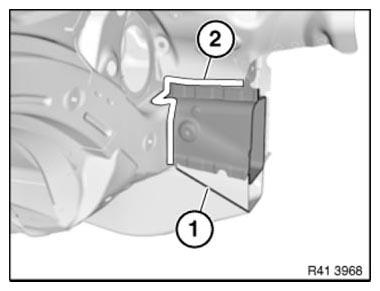

Fig 2: Identifying Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

OPEN spot-welded adhesive joints in areas (2).

Roughly cut side frame connection along lines (3).

Release the side frame connection from the cavity sealing and remove.

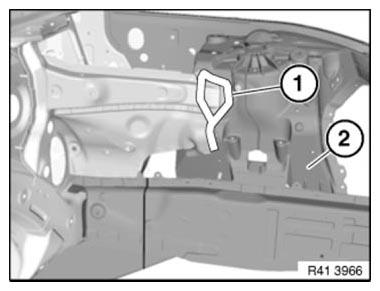

Fig 3: Identifying Welded Connections Area And Side Frame Connection Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove cavity sealing (2).

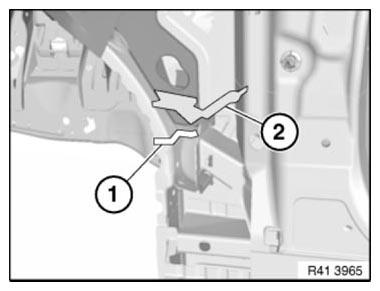

Fig 4: Identifying Cavity Sealing And Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with dimension a and cut engine support.

Dimension a = 140 mm

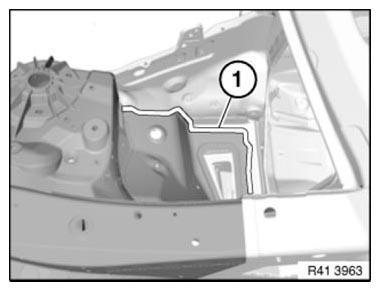

Fig 5: Identifying Engine Support Severance Cut Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivet connections in area (1).

Open bonded connections in area (1).

Remove wheel arch (2) with engine support.

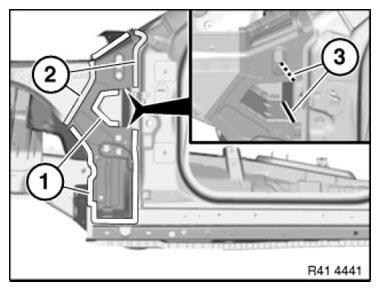

Fig 6: Identifying Wheel Arch And Rivet Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove metal section (2).

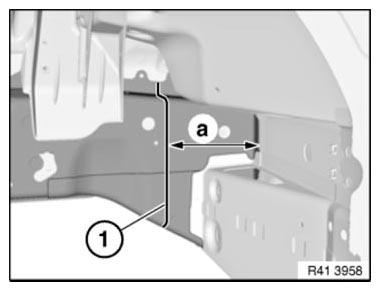

Fig 7: Identifying Metal Section And Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) and cut.

IMPORTANT: Cut outer panel only.

Open welded connections in area (2).

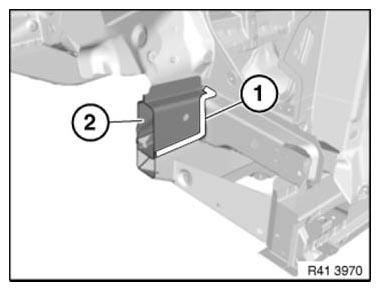

Fig 8: Identifying Severance Cut And Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

View of engine support from front.

Open welded connections in area (1).

Fig 9: Identifying Front Engine Support And Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove part section (2).

Fig 10: Identifying Part Section And Welded Connection Area
