41 11 015 Replacing Engine Support With Wheel Arch, Left: Notes
Observe procedures of REPAIR STAGES 3 .
Read contents of BODY, GENERAL .
Steel-aluminium composite construction is used on the vehicle. Observe specific PROCEDURE .
Spot-weld bonding is used on this vehicle.
Observe specific PROCEDURE .
Use only approved SPOT-WELDING APPARATUS for repairs!
Place vehicle on straightening bench.

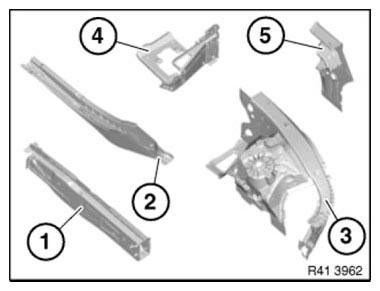

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):
- (1) Engine support
- (2) Engine support, rear
- (3) Wheel arch, front
- (4) Connection, wheel arch/entrance
- (5) Connection, side frame, rear
- (6) Shaped parts, carrier support, wheel arch, front (not shown)
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivets N2 | 25 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
