Installation of engine support with wheel arch

Clean bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Apply sealant to new cavity sealing See 41 00... INSTALLING A CAVITY ACOUSTIC BAFFLE (EXPANDED) or 41 00... INSTALLING A CAVITY ACOUSTIC BAFFLE (NOT EXPANDED) of wheel arch carrier support.

Install new parts and reinforcement plates with alignment bracket or universal mount.

Rivet the new parts analogous with the series in the adhesive areas.

Weld the new parts in the remaining joint areas.

View from below.

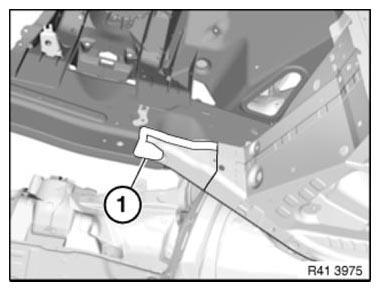

Weld new parts in area (1) same as the series.

Fig 1: Identifying Welded Part Area

G08423726

Courtesy of BMW OF NORTH AMERICA, INC.

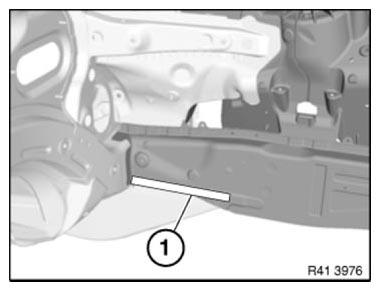

Weld new parts in area (1) same as the series.

Fig 2: Identifying Welded Part Area

G08423727

Courtesy of BMW OF NORTH AMERICA, INC.

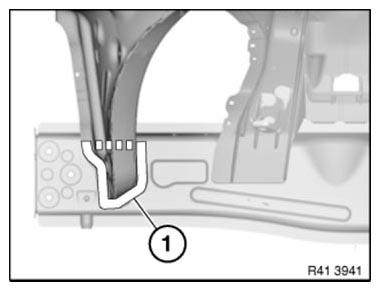

Weld new parts in area (1) same as the series.

Fig 3: Identifying Welded Connection Area

G08423728

Courtesy of BMW OF NORTH AMERICA, INC.

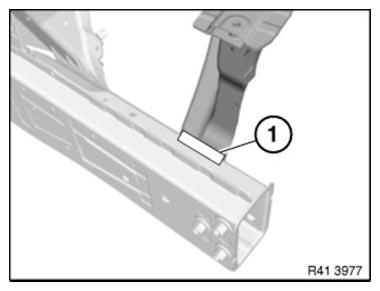

MAG-weld new part in area (1).

To do so, apply 2 fillet welds at distance of approx. 20 mm. Length of fillet welds approx. 15 mm.

Fig 4: Identifying MAG Welding Area

G08423729

Courtesy of BMW OF NORTH AMERICA, INC.

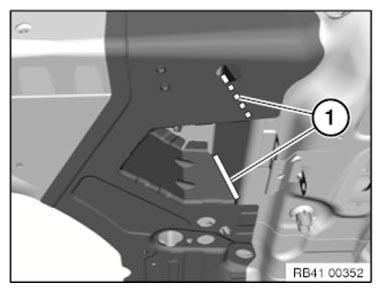

MAG-weld new part in areas (1).

To do so, apply 10 mm long fillet welds at spacing of 15 mm.

Fig 5: Identifying MAG-Weld Area

G08423730

Courtesy of BMW OF NORTH AMERICA, INC.
