Procedure for additional vehicle identification number

Cross through original vehicle identification number.

Fig 1: Identifying Original Vehicle Identification Number
Courtesy of BMW OF NORTH AMERICA, INC.

Remove engine compartment lid seal locator

= Original vehicle identification number (line 1).

Mark position lines (2) in accordance with specified dimensions/measurements.

Dimension a = 12 mm

Dimension b = 10 mm

Display input:

Select Layout 5 with arrow button.
Enter vehicle identification number with F10.
Press "ENTER" button.

NOTE: With Layout 5 the vehicle identification number (line 1) is crossed through.

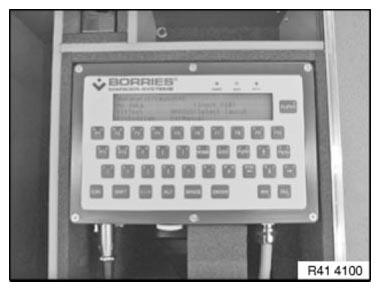

Fig 2: Identifying Display Input

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Perform stamping operation advance on a test sheet.

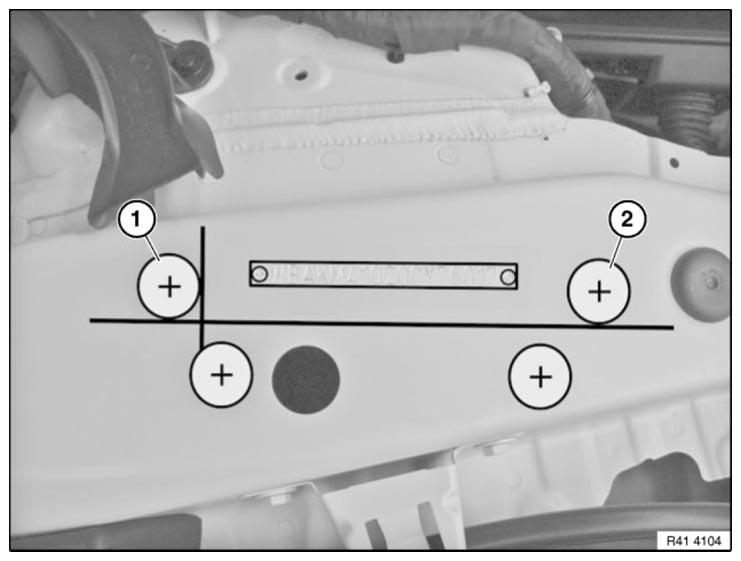

Fig 3: Adjusting Height And Position Of Suction Feet

Courtesy of BMW OF NORTH AMERICA, INC.

Move suction feet of needle stamping unit to positions (1) and (2) shown.

NOTE: The contact surface for the suction cups of the needle imprint device must be dry and free of dust and grease!
Make sure the unit is resting securely in position. If necessary, adjust the height and position of the suction feet.

Press pushbutton (1) for vacuum pressure.

Then start stamping operation with pushbutton (2).

IMPORTANT: After completing the stamping operation, do not alter the position of the unit.
Do not switch off vacuum pressure.

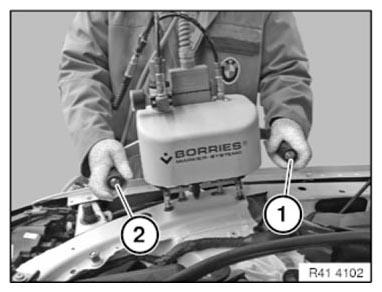

Fig 4: Pressing Pushbutton Of Vacuum Pressure
