41 14 531 Replacing Engine Support/Front Left Side Frame Connection (Front Left Wheel Arch Removed): Notes

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

To remove engine support side frame connection:

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

(1) Connection, wheel arch/entrance

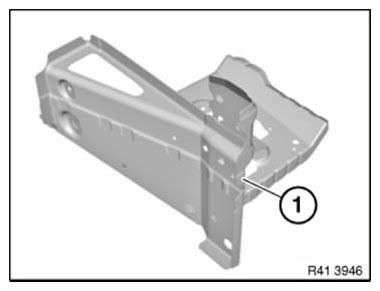

Fig 1: Identifying Wheel Arch/Entrance Connection
Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

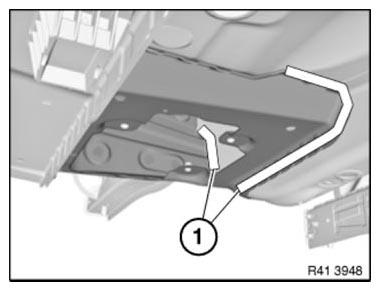

Fig 2: Identifying Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in areas (1).

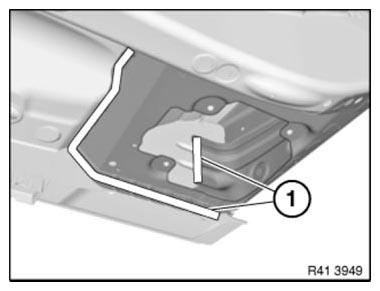

Fig 3: Identifying Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in areas (1).

Remove wheel arch/entrance connection.

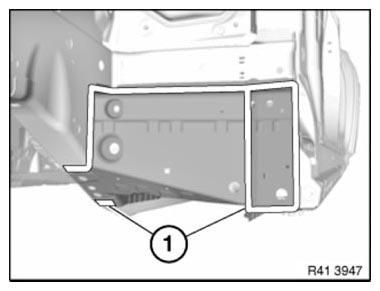

Fig 4: Identifying Wheel Arch/Entrance Welded Connection Area
