Removal of outer wheel arch section

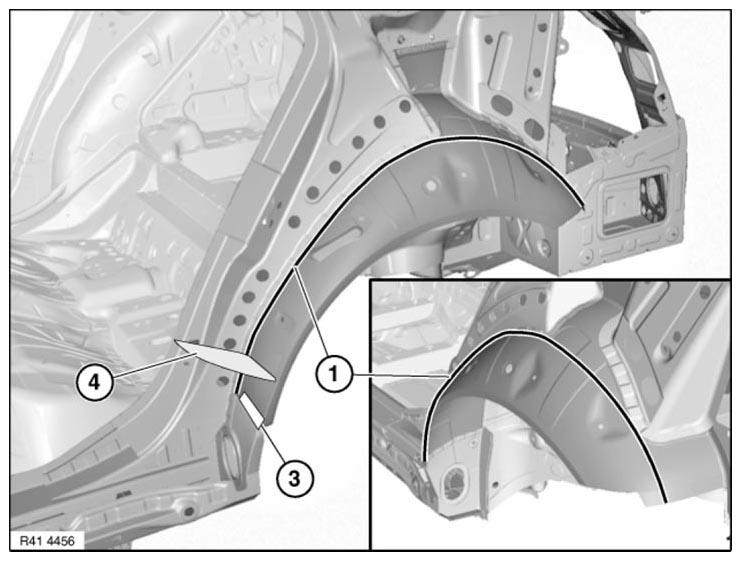

Fig 1: Identifying Severance Cut, C-Pillar Reinforcement And Cavity Acoustic Baffle

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) next to C-pillar reinforcement (2) and cut

Open welded connections in area (3).

Remove cavity acoustic baffle (4).
